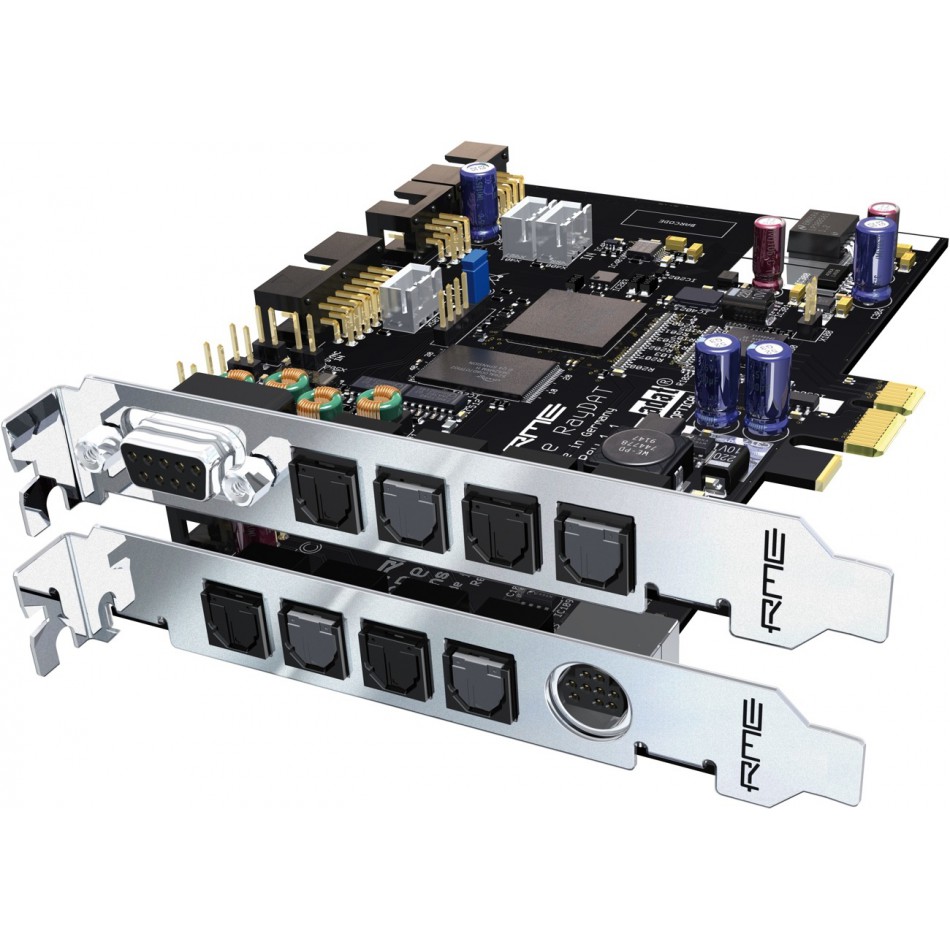

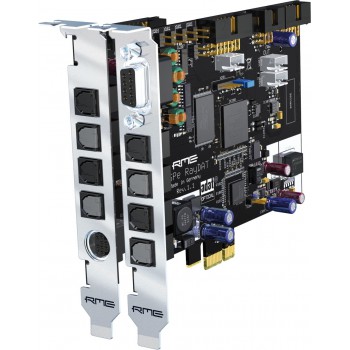

RME HDSPe RAYDAT - 72-Canais 192 kHz

Fabricante: RME
Modelo: HDSPe Raydat
Preço: 666,66€
Sem IVA: 542,00€

RME HDSPe RayDAT é uma ferramenta multi-canal, multi-formato e multi-tarefa de qualidade profissional, ideal desde a fase de captação até ao mastering.

Características:
Pela primeira vez, SPDIF (phono) e AES/EBU (XLR) são simultâneamente operacionais derivado da separação no hardware entre gravação e reprodução. A RayDAT ofereçe nada menos que 4 Portas de entrada de ADAT e mais 4 de saída, e com os cabos adicionais podemos ainda somar dois Canais de entrade e dois de saída em SPDIF Coaxial e ainda dois de entrada e dois de saída em AES/EBU, para um total máximo de 36 Canais em ambas as direcções em simultâneo, 72 no total portanto! Só para colocar a cereja no topo, podemos com o cabo opcional somar 2 entradas e duas saídas MIDI.
Como se não chegasse podemos fazer uso da excepcional mesa de mistura/ splitter/ router que corre sobre o seu DSP com uma precisão na ordem dos 40bits de resolução interna, tudo sem qualquer peso para o CPU Host, pois é calculado na RAYDAT.
Qualquer um dos formatos pode trabalhar até 192 kHz (ADAT com norma/MUX4, naturalmente com consequente redução de número de canais).
Opcionalmente podemos adicionar expações de WordClock e sincronizmos também com LTC, Vídeo e TDIF.

Features(Differences to HDSP 9652):
PCI Express interface
Additional (fourth) ADAT I/O
S/PDIF and AES/EBU I/O
simultaneously operational
Sample rates up to 192 kHz
even lower latencies
Greatly enhanced TotalMix
Word Clock I/O via optional expansion board
direct support of HDSP TCO
No ADAT Sync port (D-sub)
The HDSPe RayDAT provides unique features:
4 x ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
1 x SPDIF digital I/O, 192 kHz-capable
1 x AES/EBU digital I/O, 192 kHz-capable
2 x MIDI I/O, 32 channels high-speed MIDI via breakout cable
Up to 36 inputs and 36 outputs can be used simultaneously!
DIGICheck, RMEs unique metering- and analysing tool
TotalMix: 2592 channel mixer with 42 bit internal resolution
Native PCI Express - no PCI to PCI Express bridge used
S/MUX poured in hardware: 16 channels 24-bit/96kHz for record and playback on ADAT optical
HDSPe RayDAT includes SteadyClockTM, RME's own clock technology, combining professional features like maximum jitter suppression at full varipitch capabilities and software controlled sample rates.
Included software:
DIGICheck for Windows: Spectral Analyser, professional level meter for 2, 8, or 36 channels, Vector Audio Scope, various other audio analysis tools.
Drivers: Windows 2000/XP/Vista/64 (full ASIO multi-client operation of WDM, GSIF 2.0 and ASIO 2.0), Mac OS X Intel (Core Audio and Core MIDI).
Settings:
Just click on the hammer symbol in the systray of the taskbar and the settings dialog of the HDSPe RayDAT comes up. The clear structured, easy to understand window plus the unique informative status windows for input signal, clock mode, sample rate and time code make your work with the card to a real pleasure. With a simple mouse click you gain access to the full power of your card.
When working with several digital sources it is not only necessary that these are all properly locked, they also have to be totally synchronized. Else drop outs and crackling occurs. RME's exclusive SyncCheck © checks all input signals. In clock mode Master the synchronous operation to the internal clock is checked. This outstanding and unique technology helps to find errors immediately. The actual state of each input is displayed in the settings dialog.
RME's unique SyncCheck and AutoSync technology has evolved into the new Intelligent Clock Control (ICC)  of the HDSPe system. HDSPe RayDAT measures and displayes the frequency of all clock sources. Even word clock! Based on validity and current sample rate the system then decides which clock source should be used - fully automated and performed in hardware. With this the HDSPe system offers the most easiest handling of the present clocks, although having a lot digital inputs, plus the most advanced support when configuring the clock setup.
Tech Specs:
Supported sample frequencies: Internally 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz. Externally 28 kHz - 200 kHz.
8 buffer sizes/latencies available: 0.7 ms, 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms
All settings changeable in realtime
Automatic and intelligent master/slave clock control
Enhanced Mixed mode: All inputs and outputs simultaneously operational
Unsurpassed Bitclock PLL (audio synchronization) in ADAT mode
TMS (Track Marker Support): Supports CD/DAT start-IDs and the read out of CD subcode
DIGICheck, RME's ultimate measurement, analysis and test tool
Unique status windows for record and playback, showing mode and sample
Super low jitter design: < 1 ns in all clock modes
Optional Expansions:
Expansion Boards WCM/TEB
Word Clock Expansion: The optional 9632 Word Clock Module provides a galvanically isolated word clock input and two word clock outputs via BNC jacks.
TDIF Expansion: HDSPe RayDAT can provide up to two TDIF interfaces when using the TEB module.
HDSP TCO: Timecode Option Module adding further sync options: 1 x word clock I/O, 1 x video sync input (alternative to wc input), 1 x LTC I/O.
Accessories:
Digital breakout cable, AES/EBU & SPDIF (BO968)
MIDI breakout cable (BOHDSP9652MIDI)
